Vertical leaf filter / vibration filter of the scope of application:
Vertical leaf filter / vibration filter is suitable for the oil, chemical, pharmaceutical and etc in the production of decolored oil filter, clarification, filter, crystal filtration separation process. It particularly solved the problem of pressed oil is hard to filter and discharging in the cotton seed,rapeseed,mustard seed oil industry.
Vertical leaf filter
Vertical leaf filter / vibration filter main components:

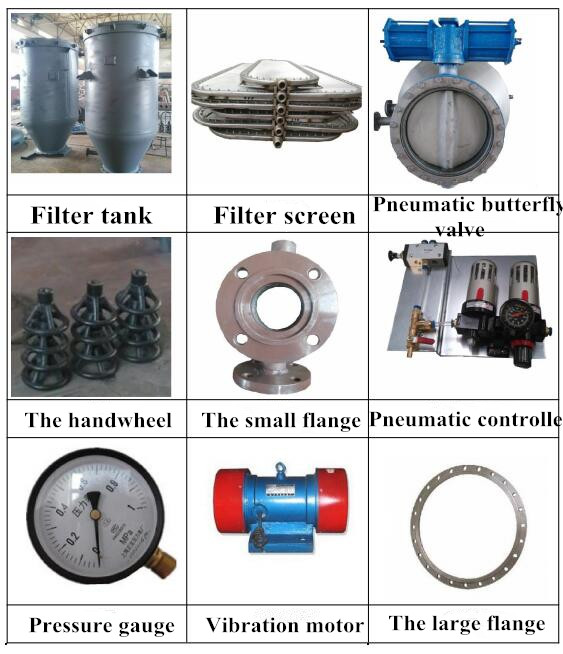

DY series vertical leaf filter is mainly composed of parts of tank, the hoisting mechanism, vibrator, mesh, slag discharge butterfly valve assembly, pressure display parts.

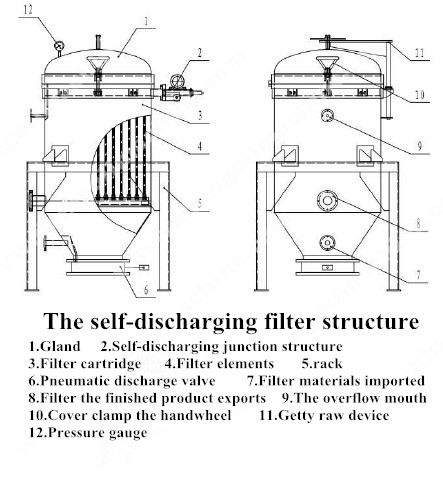

Vertical leaf filter structure
Vertical leaf filter / vibration filter characteristics:

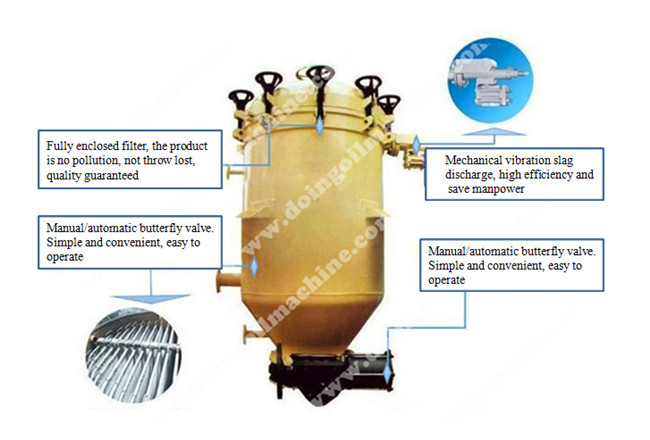

DY series vertical leaf filter is ideal filter equipment of oil, chemical, food, pharmaceutical and other industries the production process for solid-liquid separation.This machine has the following features:
1) compact structure, cover an area of an area small;
2) special filter unit, good filtering effect and low loss;
3) mechanical vibration slag discharge, low labor intensity;
4) high productivity, work place clean and health;
5) two parallel can realize continuous production.
Vertical leaf filter / vibration filter main components
Model |
Filter area (m2) |
Tank diameter |
Filter spacing (mm) |
Entrance | Exit |
Working pressure (Mpa) |
Overflow port | Discharge port | Height |
Weight (kg) |
DY -4 | 4 | 500mm | 70 | Dg50 | 80mm | 0.1-0.49 | Dg32 | 300mm | 1200mm | 200 |
DY -8 | 8 | 650mm | 70 | Dg50 | 80mm | 0.1-0.49 | Dg32 | 400mm | 2350mm | 800 |
DY -10 | 10 | 800mm | 70 | Dg50 | 80mm | 0.1-0.49 | Dg32 | 400mm | 2400mm | 1000 |
DY -12 | 12 | 900mm | 70 | Dg50 | 80mm | 0.1-0.49 | Dg32 | 400mm | 2350mm | 1300 |
DY -15 | 15 | 900mm | 70 | Dg50 | 80mm | 0.1-0.49 | Dg32 | 400mm | 2450mm | 1500 |
DY -20 | 20 | 1100mm | 75 | Dg50 | 80mm | 0.1-0.49 | Dg32 | 400mm | 2450mm | 1800 |
DY -30 | 30 | 1200mm | 75 | Dg50 | 80mm | 0.1-0.49 | Dg32 | 400mm | 2550mm | 2500 |
DY -40 | 40 | 1300mm | 75 | Dg70 | 80mm | 0.1-0.49 | Dg50 | 500mm | 3400mm | 3400 |
DY -50 | 52 | 1400mm | 75 | Dg80 | 80mm | 0.1-0.49 | Dg50 | 500mm | 3500mm | 3800 |
DY -60 | 62 | 1500mm | 75 | Dg80 | 80mm | 0.1-0.49 | Dg50 | 600mm | 3600mm | 4500 |
DY-80 | 80 | 1600mm | 80 | Dg80 | 80mm | 0.1-0.49 | Dg50 | 600mm | 3800mm | 6000 |
