Batch type cooking oil refinery plant
Batch Type Edible Oil Refinery / Chat on line / Give me a price / Date:Jul 20, 2018
According to different capacity and technology, the cooking oil refinery plant can be divided into three kinds which including batch type cooking oil refinery plant, semi-continuous cooking oil refinery plant and continuous cooking oil refinery plant. 1-20tpd batch type cooking oil refinery plant is the simplest technology, so the cost of it is also lowest.
Note: Other products 20-50tpd edible oil refinery production machine, 400TPD crude edible oil refinery plant.
Note: Other products 20-50tpd edible oil refinery production machine, 400TPD crude edible oil refinery plant.

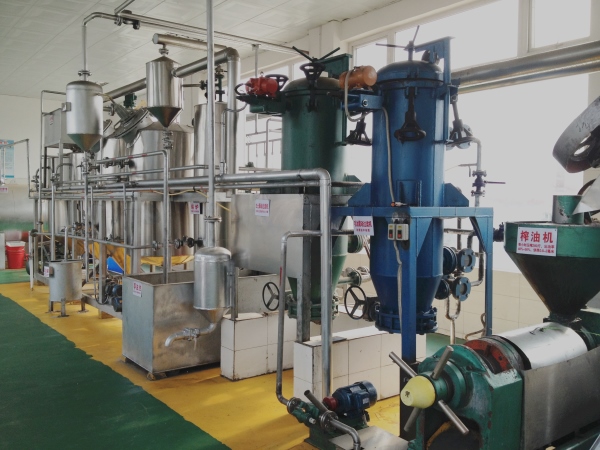

1tpd cooking oil refinery plant
Main equipment of batch type cooking oil refinery plant:
- Neutralization pot: To move the acid in the edible oil and washing the oil.
- Decolorization pot: To move the pigment in the oil.
- Deodorization pot: To move the pungent taste in the cooking oil.
- Conductive oil stove: It is used to provide the heat for the whole batch type cooking oil refinery plant process.
- Vacuum pump: The function of batch type cooking oil refinery plant is to provide vacuum for decolorization and deodorization.
- Air compressor: It will dry the white clay after absorb the pigment in the oil.
- Steam generator: To generate the steam for the deodorization pot.
Working process flow chart of batch type cooking oil refinery plant
Features of batch type cooking oil refinery plant:
1. The extra boiler is not needed, so batch type cooking oil refinery plant has wide scope of application.
2. The combination of short mixing and long mixing ensure the quality of washing.
3. The leaf filter is used in the decolorization section. The advantages of it is simple operation, less worker, oil residues is less in the white clay.
4. Cooking oil refinery plant can be used to refine various edible oil, after changing the temperature of water.
5. The quality of final oil is stabilize.
Technical parameters of batch type cooking oil refinery plant:
1. The extra boiler is not needed, so batch type cooking oil refinery plant has wide scope of application.
2. The combination of short mixing and long mixing ensure the quality of washing.
3. The leaf filter is used in the decolorization section. The advantages of it is simple operation, less worker, oil residues is less in the white clay.
4. Cooking oil refinery plant can be used to refine various edible oil, after changing the temperature of water.
5. The quality of final oil is stabilize.
Technical parameters of batch type cooking oil refinery plant:
| Consumption Item | Capacity |
| Steam | 700Kg/T |
| Electricity | 28Kwh/T |
| Water | 150Kg/T |
| Phosphoric acid | 2-3Kg/T |
| Alkali | Acid value X1-3Kg/T |
| Water circulation and cooling water | 150m³/H |
| White clay | 3-5Kg/T |
| Oil in the waste white clay | ＜25-35% |
| Oil consumption in neutralization | Acid value X1.2（chemical way） |
| Acid value X0.6（physical way） | |
| Oil consumption in decolorization | White clay X0.25% |
| Oil consumption in deodorization | ≤0.5% |
The batch type cooking oil refinery plant can be used to produce 1st and 2nd grade oil from crude vegetable oil. The suitable capacity is 1-20T per day.
However, different oils have different refining processes. Our engineer can help you choose most suitable cooking oil refinery plant according to your capacity and requirements. If you want to know more about batch type cooking oil refinery plant, please do not hesitate to contact us.
